TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
E03048200
Legacy Part Number
21303000001
Product Family
MAK

Other properties

No. of cavities
2
Terminal Type
Receptacle
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
Color
BLUE

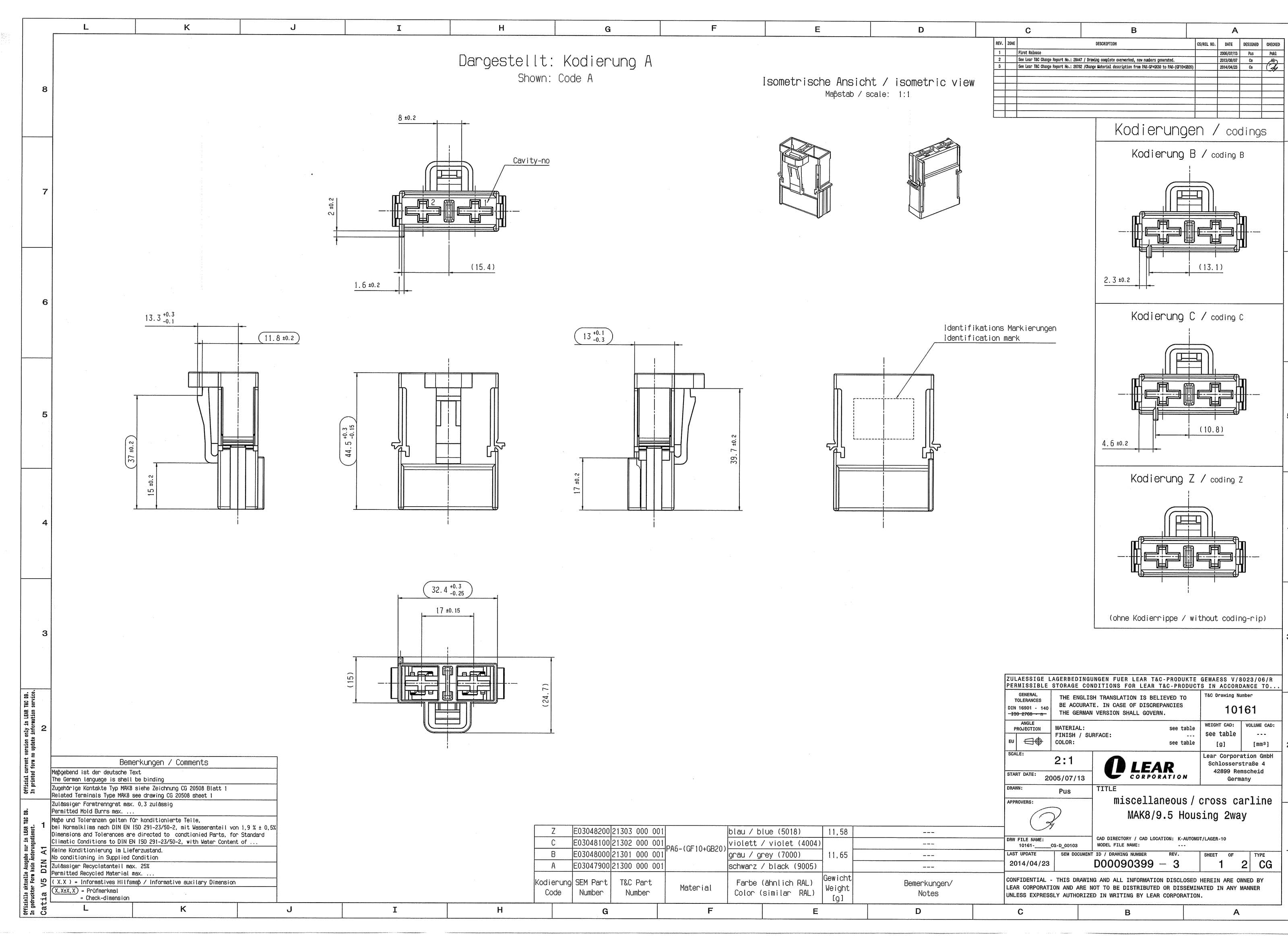

2D Drawing

2D Drawing E03048200

DOWNLOAD
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Ag, 1.5-2.5mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Ag, 1.5-2.5mm²
32025Y2G0
Product Category:
TERMINALS
Legacy Part Number:
28410306710
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 2.5-4mm²
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 2.5-4mm²
3202598Q0
Product Category:
TERMINALS
Legacy Part Number:
28222306710
Terminal Size [mm]
8, 9.5
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 6-10mm²
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 6-10mm²
3202598R8
Product Category:
TERMINALS
Legacy Part Number:
28223306710
Terminal Size [mm]
8, 9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 10-16mm²
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 10-16mm²
3202598P2
Product Category:
TERMINALS
Legacy Part Number:
28238306710
Terminal Size [mm]
8, 9.5
Minimum Cable Cross section [mm²]
10
Maximum Cable Cross section [mm²]
16
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
32025Y2GU
Product Category:
TERMINALS
Legacy Part Number:
28488306189
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
3202602Z2
Product Category:
TERMINALS
Legacy Part Number:
28253306179
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm²
32025Y2G1
Product Category:
TERMINALS
Legacy Part Number:
28490306189
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm²
320263VX7
Product Category:
TERMINALS
Legacy Part Number:
28223306179
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm²
3202603A8
Product Category:
TERMINALS
Legacy Part Number:
28252306179
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 10-16mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 10-16mm²
32025Y2G2
Product Category:
TERMINALS
Legacy Part Number:
28494306189
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
10
Maximum Cable Cross section [mm²]
16
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 10-16mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 10-16mm²
3202603B6
Product Category:
TERMINALS
Legacy Part Number:
28239306179
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
10
Maximum Cable Cross section [mm²]
16
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, 2.5-4mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, 2.5-4mm²
32025Y38S
Product Category:
TERMINALS
Legacy Part Number:
28253306710
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, 6-10mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, 6-10mm²
32025Y38T
Product Category:
TERMINALS
Legacy Part Number:
28252306710
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, 10-16mm²
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, 10-16mm²
32025Y38U
Product Category:
TERMINALS
Legacy Part Number:
28239306710
Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
10
Maximum Cable Cross section [mm²]
16

E03048200 - 2way MAK 8.0/9.5 Receptacle Unsealed Blue Connector

Part Number: E03048200

2way MAK 8.0/9.5 Receptacle Unsealed Blue Connector

Product Specification

Previously cataloged under part number 21303000001.

This connector belongs to the MAK product family within the Connectors category, configured as a 2-cavity unsealed receptacle. It accommodates terminal sizes of 8.0 and 9.5 mm.

The main connector part is molded in PA6 GF GB with a dominant blue color.

Part Number: E03048200.

This product requires other components for a fully functional assembly configuration:
