TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E01248100
- Legacy Part Number
- 13675555660
- Product Family
- MAK
Other properties
- No. of cavities
- 1
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 8.0, 9.5
- Sealable
- Unsealed
- Color
- GREY
1way MAK 8.0/9.5 Receptacle Unsealed Black Connector
E01248800
Product Category:
CONNECTORSLegacy Part Number:
13669555699Color
BLACK
No. of cavities
1
Product Family
MAK
Terminal Size [mm]
8.0, 9.5
1way MAK 8.0/9.5 Receptacle Unsealed Violet Connector
E01248400
Product Category:
CONNECTORSLegacy Part Number:
13672555679Color
VIOLET
No. of cavities
1
Product Family
MAK
Terminal Size [mm]
8.0, 9.5
1way MAK 8.0/9.5 Receptacle Unsealed Connector
E06940000
Product Category:
CONNECTORSLegacy Part Number:
13670000001Color
–
No. of cavities
1
Product Family
MAK
Terminal Size [mm]
8.0, 9.5
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 2.5-4mm²
3202598Q0
Product Category:
TERMINALSLegacy Part Number:
28222306710Terminal Size [mm]
8, 9.5
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 6-10mm²
3202598R8
Product Category:
TERMINALSLegacy Part Number:
28223306710Terminal Size [mm]
8, 9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 10-16mm²
3202598P2
Product Category:
TERMINALSLegacy Part Number:
28238306710Terminal Size [mm]
8, 9.5
Minimum Cable Cross section [mm²]
10
Maximum Cable Cross section [mm²]
16
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
32025Y2FY
Product Category:
TERMINALSLegacy Part Number:
28222306179Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm²
320263VX7
Product Category:
TERMINALSLegacy Part Number:
28223306179Terminal Size [mm]
8.0, 9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10

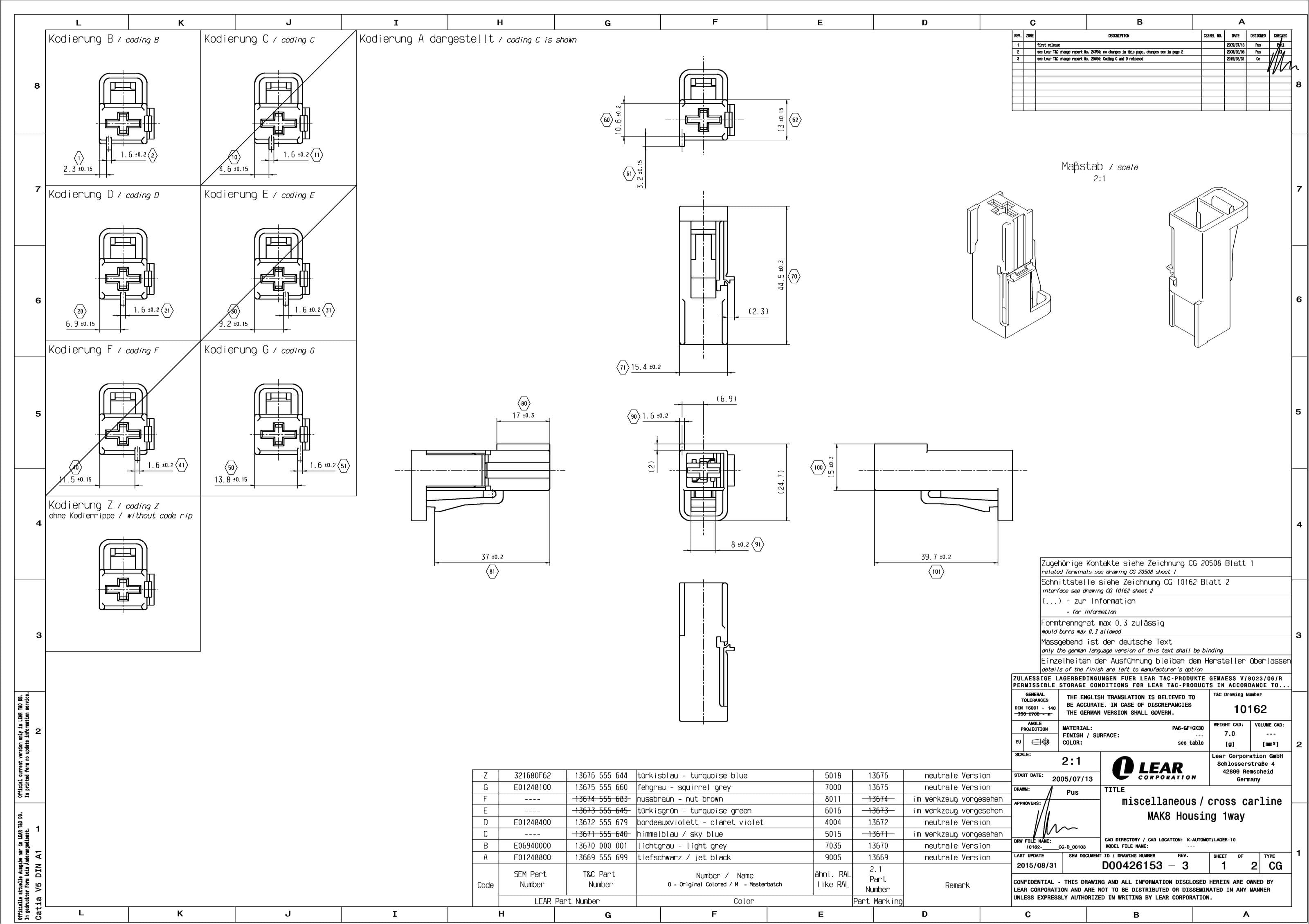

E01248100 - 1way MAK 8.0/9.5 Receptacle Unsealed Grey Connector
Part Number: E01248100
Product Specification
Previously cataloged under part number 13675555660.
This connector belongs to the MAK product family within the Connectors category, configured as a 1-way (single-circuit) unsealed receptacle.
Compatible with terminal sizes of 8.0 and 9.5 mm, this receptacle accommodates a range of terminal fitments within the MAK 8.0/9.5 platform.
The main connector part is molded in PA6 GF GB with a dominant grey color.
Part Number: E01248100.
This product requires other components for a fully functional assembly configuration:
- MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 2.5-4mm² (3202598Q0)
- MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 6-10mm² (3202598R8)
- MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 10-16mm² (3202598P2)
- MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm² (32025Y2FY)
- MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm² (320263VX7)
Lear Connection Systems is offering other variants of this product:
