TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E21289600
- Product Family
- MSK, MAK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 100
- Connector Application
- Seat Motor
- Mechanical coding
- F

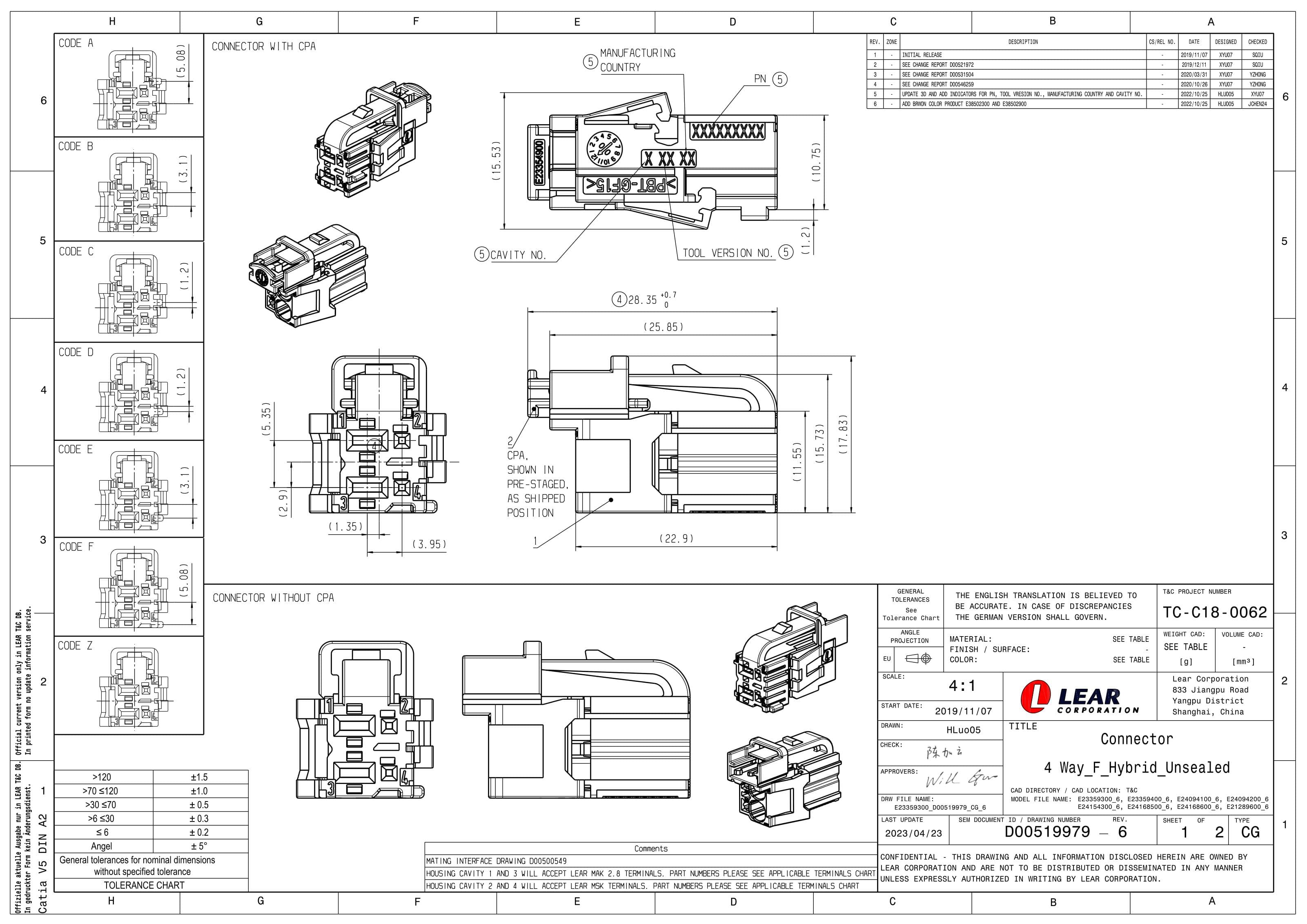

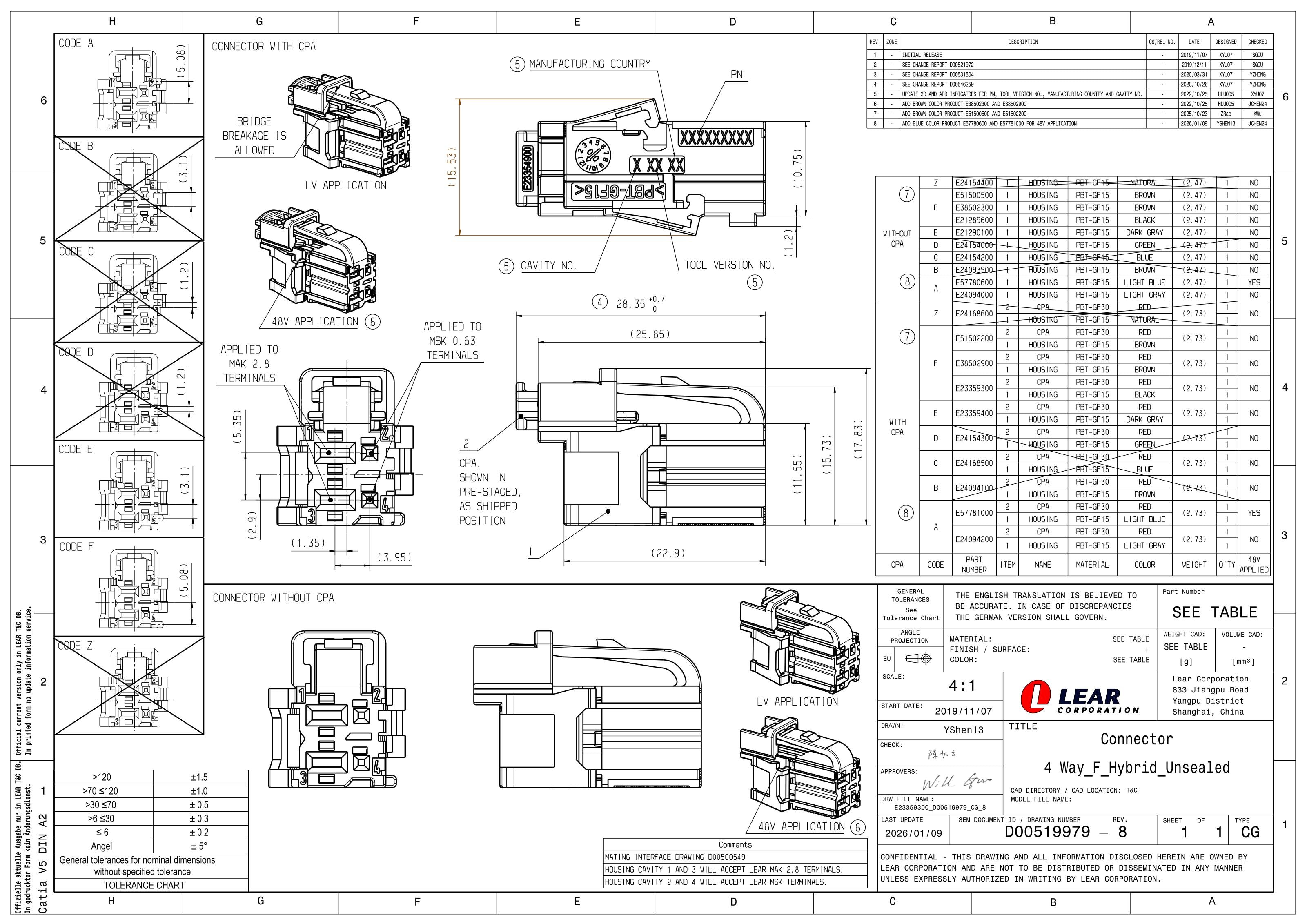

2D Drawing
2D Drawing E21289600
4way MAK/MSK 0.63/2.8 Receptacle Unsealed Green Connector, Code D
E24154000
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
GREEN
No. of cavities
4
Product Family
MAK, MSK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Black Connector with CPA, Code F
E23359300
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BLACK
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Blue Connector with CPA, Code C
E24168500
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BLUE
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector with CPA, Code B
E24094100
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BROWN
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector with CPA, Code F
E38502900
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BROWN
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector with CPA, Code F
E51502200
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
BROWN
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Dark Gray Connector with CPA, Code E
E23359400
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
DARK GRAY
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Green Connector with CPA, Code D
E24154300
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
GREEN
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Light Gray Connector with CPA, Code A
E24094200
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
LIGHT GRAY
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Natural Connector with CPA, Code Z
E24168600
Product Category:
CONNECTORSLegacy Part Number:
–CPA
With CPA
Color
NATURAL
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Blue Connector, Code C
E24154200
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BLUE
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector, Code B
E24093900
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BROWN
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector, Code F
E38502300
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BROWN
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector, Code F
E51500500
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
BROWN
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Dark Gray Connector, Code E
E21290100
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
DARK GRAY
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Light Gray Connector, Code A
E24094000
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
LIGHT GRAY
No. of cavities
4
Product Family
MSK, MAK
4way MSK/MAK 0.63/2.8 Receptacle Unsealed Natural Connector, Code Z
E24154400
Product Category:
CONNECTORSLegacy Part Number:
–CPA
–
Color
NATURAL
No. of cavities
4
Product Family
MSK, MAK

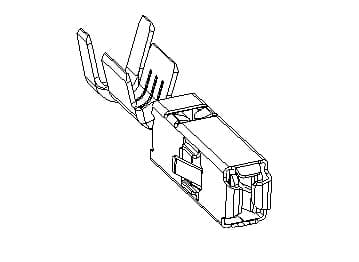

MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 4mm²
E13276000
Product Category:
TERMINALSLegacy Part Number:
29086000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
4
MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 0.2-0.35mm²
E18902300
Product Category:
TERMINALSLegacy Part Number:
28271000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 0.5-1mm²
E18902100
Product Category:
TERMINALSLegacy Part Number:
28272000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 1.5-2.5mm²
E18902000
Product Category:
TERMINALSLegacy Part Number:
28273000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.2-0.35mm²
3202595X5
Product Category:
TERMINALSLegacy Part Number:
28433306709Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.5-1mm²
3202595W7
Product Category:
TERMINALSLegacy Part Number:
28432306709Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 1.5-2.5mm²
32025Y2TN
Product Category:
TERMINALSLegacy Part Number:
28431306709Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
3202597W5
Product Category:
TERMINALSLegacy Part Number:
28271306185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
3202594J9
Product Category:
TERMINALSLegacy Part Number:
28272306185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
3202594K7
Product Category:
TERMINALSLegacy Part Number:
28273306185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5

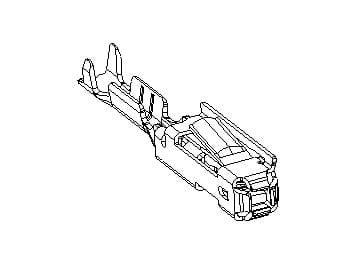

MSK 0.63 Receptacle Unsealed Crimp Terminal, Au, 0.22-0.5mm²
3202598F4
Product Category:
TERMINALSLegacy Part Number:
28054201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202574Z6
Product Category:
TERMINALSLegacy Part Number:
28034201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202519S9
Product Category:
TERMINALSLegacy Part Number:
28054201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
3202575I5
Product Category:
TERMINALSLegacy Part Number:
28038201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
3202598D9
Product Category:
TERMINALSLegacy Part Number:
28053201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.22-0.5mm²
32025Y0WH
Product Category:
TERMINALSLegacy Part Number:
28034201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm²
32025Y2CL
Product Category:
TERMINALSLegacy Part Number:
28053201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm²
E00000460
Product Category:
TERMINALSLegacy Part Number:
28038201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75

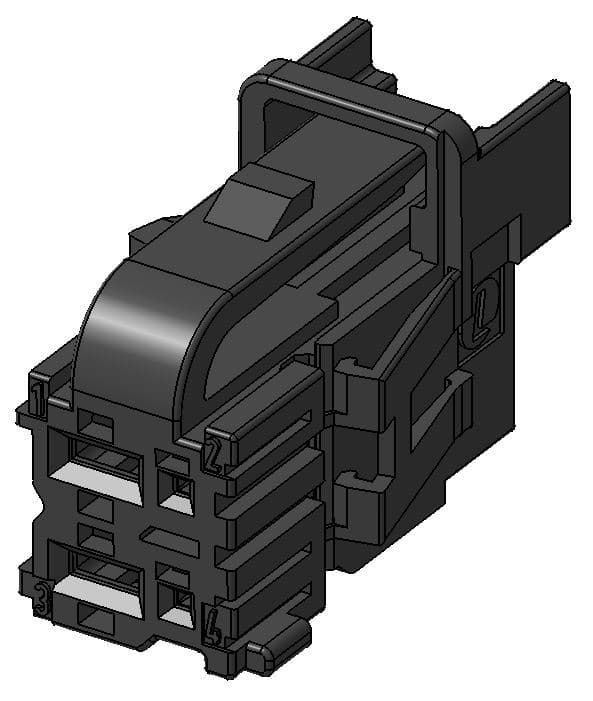

E21289600 - 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Black Connector, Code F
Part Number: E21289600
Product Specification
This unsealed receptacle connector accommodates 4 cavities and is compatible with both MSK and MAK product families, supporting terminal sizes of 0.63 mm and 2.8 mm within the same housing.
Primarily designed for seat motor applications in automotive vehicles.
Mating integrity is ensured through a Code F mechanical coding (poka-yoke) feature, and the connector is equipped with Terminal Position Assurance (TPA) to secure terminals in their seated positions.
The main connector part is molded in PBT GF with a dominant black color, and the assembly is rated for an operating temperature range of −40 °C to 130 °C.
Part Number: E21289600.
This product requires other components for a fully functional assembly configuration:
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 4mm² (E13276000)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 0.2-0.35mm² (E18902300)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 0.5-1mm² (E18902100)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 1.5-2.5mm² (E18902000)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.2-0.35mm² (3202595X5)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.5-1mm² (3202595W7)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 1.5-2.5mm² (32025Y2TN)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (3202597W5)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (3202594J9)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (3202594K7)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Au, 0.22-0.5mm² (3202598F4)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202574Z6)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202519S9)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (3202575I5)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (3202598D9)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.22-0.5mm² (32025Y0WH)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm² (32025Y2CL)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm² (E00000460)
Lear Connection Systems is offering other variants of this product:
- 4way MAK/MSK 0.63/2.8 Receptacle Unsealed Green Connector, Code D (E24154000)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Black Connector with CPA, Code F (E23359300)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Blue Connector with CPA, Code C (E24168500)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector with CPA, Code B (E24094100)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector with CPA, Code F (E38502900)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector with CPA, Code F (E51502200)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Dark Gray Connector with CPA, Code E (E23359400)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Green Connector with CPA, Code D (E24154300)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Light Gray Connector with CPA, Code A (E24094200)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Natural Connector with CPA, Code Z (E24168600)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Blue Connector, Code C (E24154200)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector, Code B (E24093900)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector, Code F (E38502300)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Brown Connector, Code F (E51500500)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Dark Gray Connector, Code E (E21290100)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Light Gray Connector, Code A (E24094000)
- 4way MSK/MAK 0.63/2.8 Receptacle Unsealed Natural Connector, Code Z (E24154400)
