TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E24154000
- Product Family
- MAK, MSK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- GREEN
- Min Temp (C)
- -40
- Max Temp (C)
- 100
- Connector Application
- Seat Motor
- Mechanical coding
- D

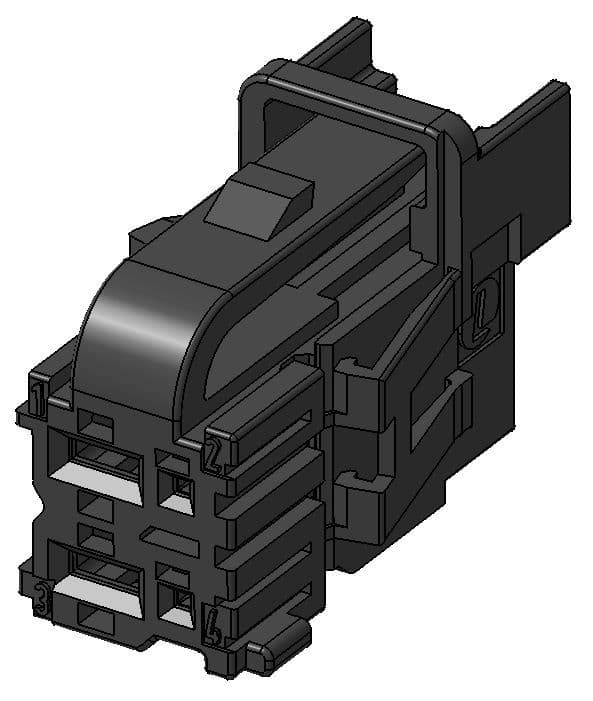

2D Drawing
2D Drawing E24154000
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202519S9
Product Category:
TERMINALSLegacy Part Number:
28054201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202574Z6
Product Category:
TERMINALSLegacy Part Number:
28034201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
3202575I5
Product Category:
TERMINALSLegacy Part Number:
28038201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
3202594K7
Product Category:
TERMINALSLegacy Part Number:
28273306185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.5-1mm²
3202595W7
Product Category:
TERMINALSLegacy Part Number:
28432306709Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.2-0.35mm²
3202595X5
Product Category:
TERMINALSLegacy Part Number:
28433306709Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
3202597W5
Product Category:
TERMINALSLegacy Part Number:
28271306185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
3202598D9
Product Category:
TERMINALSLegacy Part Number:
28053201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, Au, 0.22-0.5mm²
3202598F4
Product Category:
TERMINALSLegacy Part Number:
28054201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm²
32025Y2CL
Product Category:
TERMINALSLegacy Part Number:
28053201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm²
E00000460
Product Category:
TERMINALSLegacy Part Number:
28038201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 4mm²
E13276000
Product Category:
TERMINALSLegacy Part Number:
29086000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
4
MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 1.5-2.5mm²
E18902000
Product Category:
TERMINALSLegacy Part Number:
28273000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 0.5-1mm²
E18902100
Product Category:
TERMINALSLegacy Part Number:
28272000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 0.2-0.35mm²
E18902300
Product Category:
TERMINALSLegacy Part Number:
28271000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
E24154000 - 4way MAK/MSK 0.63/2.8 Receptacle Unsealed Green Connector, Code D
Part Number: E24154000
Product Specification
This 4-cavity unsealed receptacle belongs to the MAK/MSK product family within the CONNECTORS category, accommodating terminal sizes of 0.63 mm and 2.8 mm.
Primarily designed for seat motor applications in automotive vehicles.
Mechanical coding D provides a poka-yoke mating feature to prevent misassembly. The connector is equipped with Terminal Position Assurance (TPA) to secure terminals in their seated positions.
The main connector part is molded in PBT GF with a dominant green color. The operating temperature range spans -40 to 130 °C.
Part Number: E24154000.
This product requires other components for a fully functional assembly configuration:
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202519S9)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202574Z6)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (3202575I5)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (3202594K7)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.5-1mm² (3202595W7)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.2-0.35mm² (3202595X5)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (3202597W5)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (3202598D9)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Au, 0.22-0.5mm² (3202598F4)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm² (32025Y2CL)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm² (E00000460)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 4mm² (E13276000)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 1.5-2.5mm² (E18902000)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 0.5-1mm² (E18902100)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Ag, 0.2-0.35mm² (E18902300)
