TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E11426700
- Legacy Part Number
- 19922000001
- Product Family
- MAK
Other properties
- No. of cavities
- 2
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 12
- Sealable
- Sealed
- CPA
- With CPA
- Color
- WHITE
- Mechanical coding
- B
2D Drawing

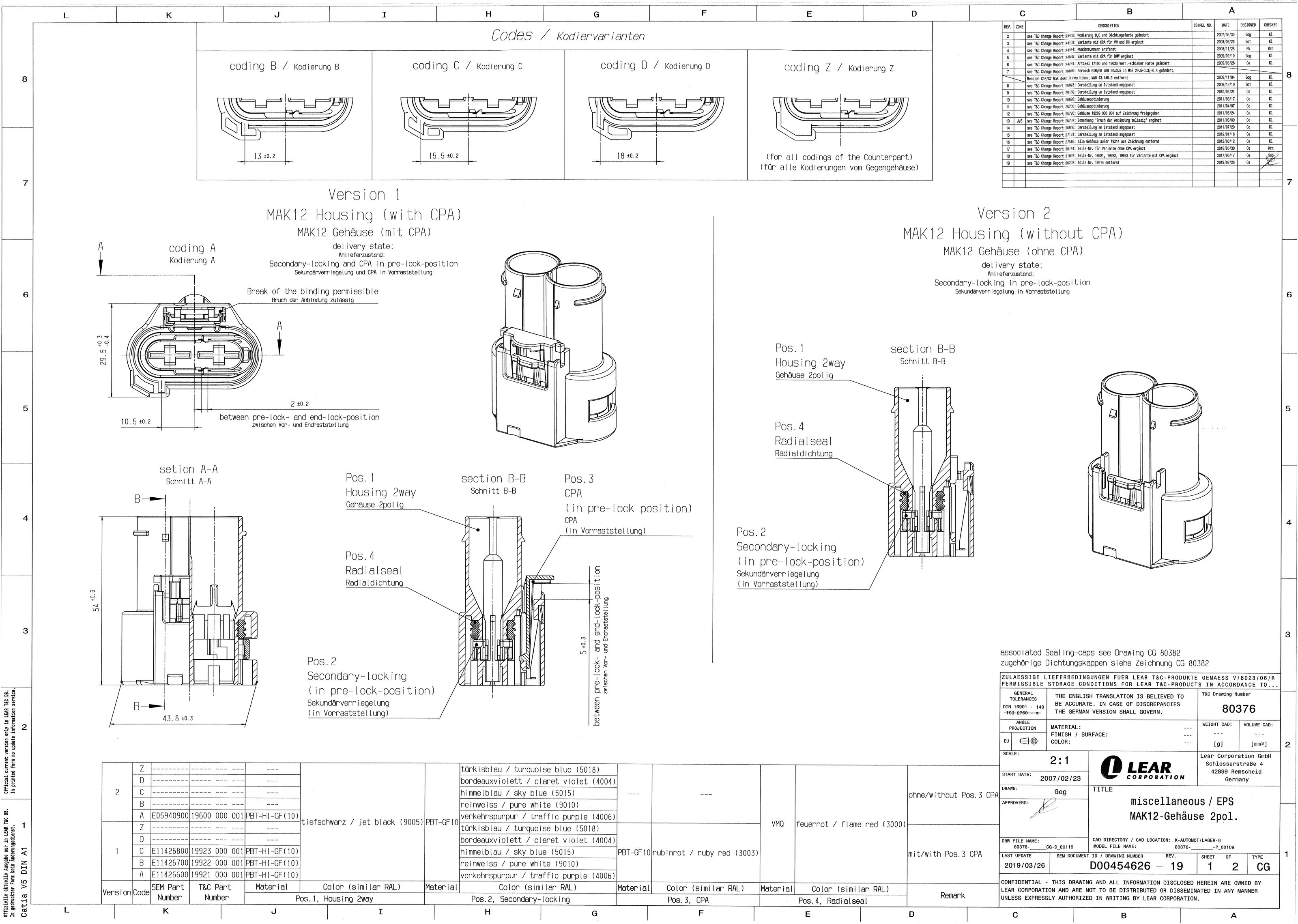

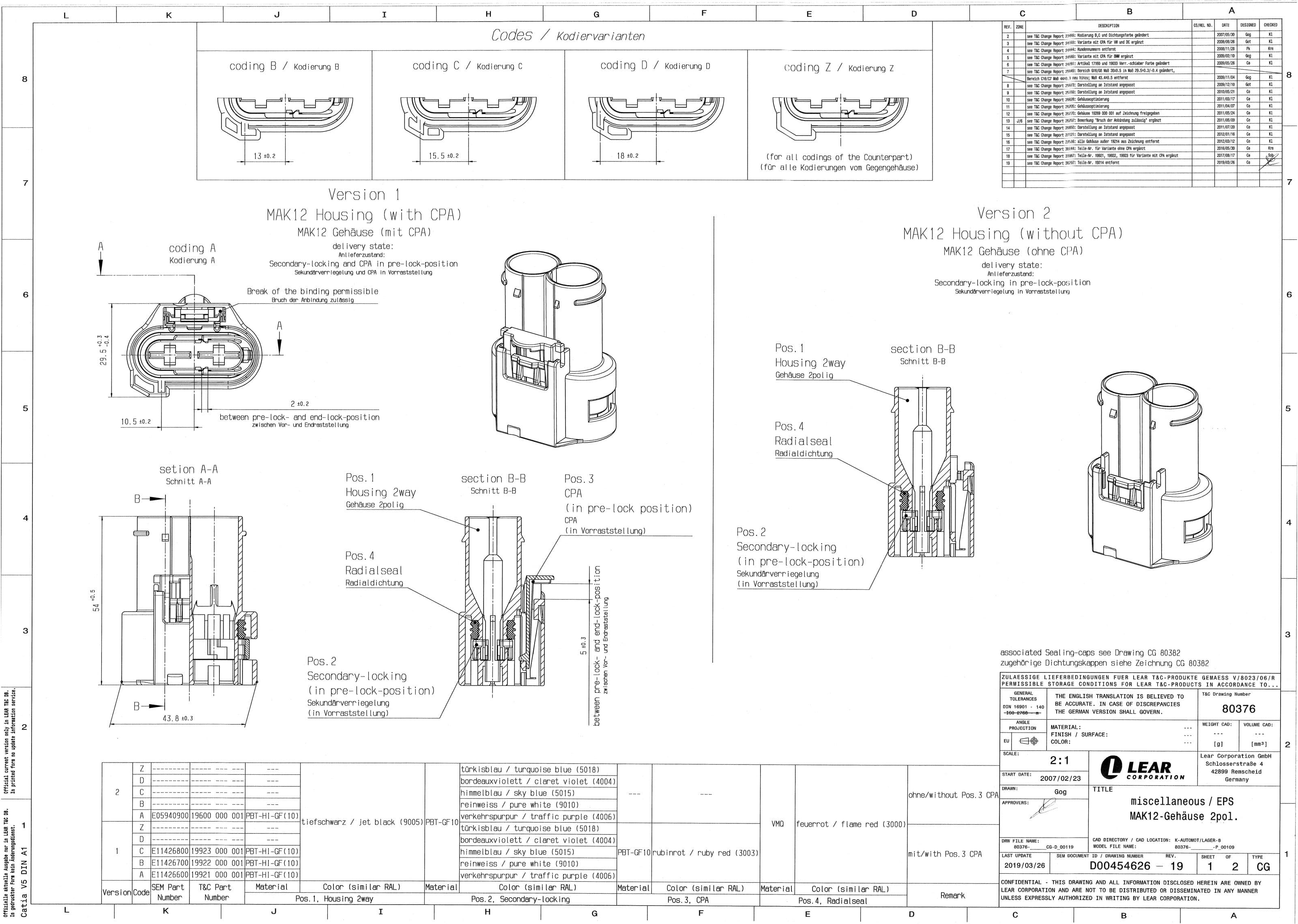

2D Drawing E11426700
4way AFK/MAK 2.8/12 Receptacle Sealed Black Connector with CPA, Code A
E01588300
Product Category:
CONNECTORSLegacy Part Number:
19335000001Product Family
AFK, MAK
No. of cavities
4
Terminal Size [mm]
2.8, 12
CPA
With CPA
2way MAK 12 Receptacle Sealed Black Connector with CPA, Code A
E11426600
Product Category:
CONNECTORSLegacy Part Number:
19921000001Product Family
MAK
No. of cavities
2
Terminal Size [mm]
12
CPA
With CPA
2way MAK 12 Receptacle Sealed Connector with CPA
E11426800
Product Category:
CONNECTORSLegacy Part Number:
19923000001Product Family
MAK
No. of cavities
2
Terminal Size [mm]
12
CPA
With CPA
2way MAK 12 Receptacle Sealed Black Connector, Code A
E05940900
Product Category:
CONNECTORSLegacy Part Number:
19600000001Product Family
MAK
No. of cavities
2
Terminal Size [mm]
12
CPA
–
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm²
E06825700
Product Category:
TERMINALSLegacy Part Number:
28499000003Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm²
E02717600
Product Category:
TERMINALSLegacy Part Number:
28499000001Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
MAK 12 Receptacle Unsealed Ultrasonic Terminal, Sn, 4-35mm²
32025Y2UU
Product Category:
TERMINALSLegacy Part Number:
28563306719Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35

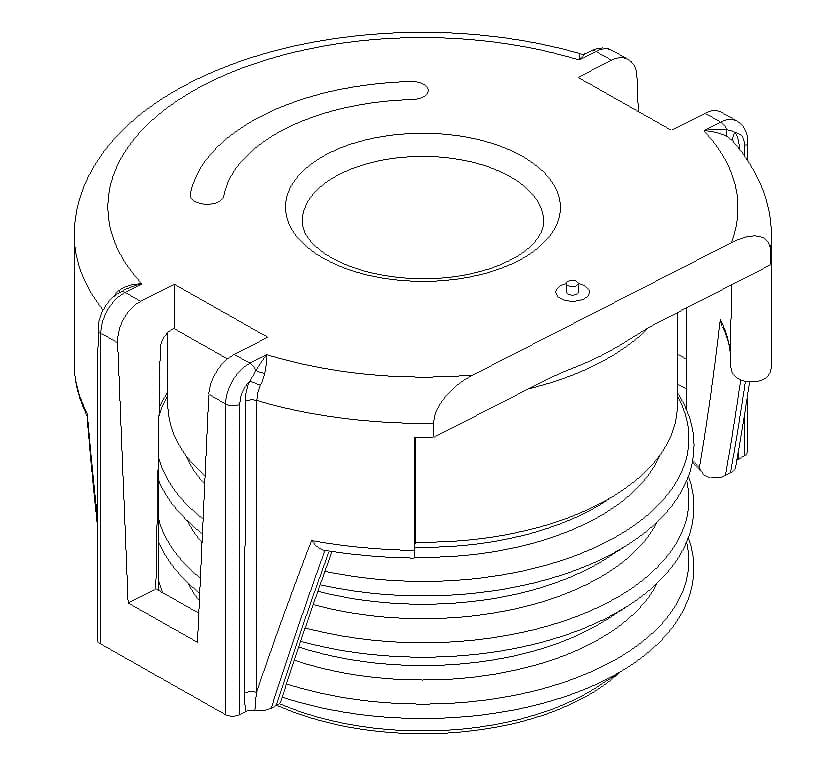

Cavity Blind Plug
32195X0N6
Product Category:
SEALSLegacy Part Number:
19131000000Seal type
Cavity Blind Plug
Cable diam min [mm]
–
Cable diam max [mm]
–

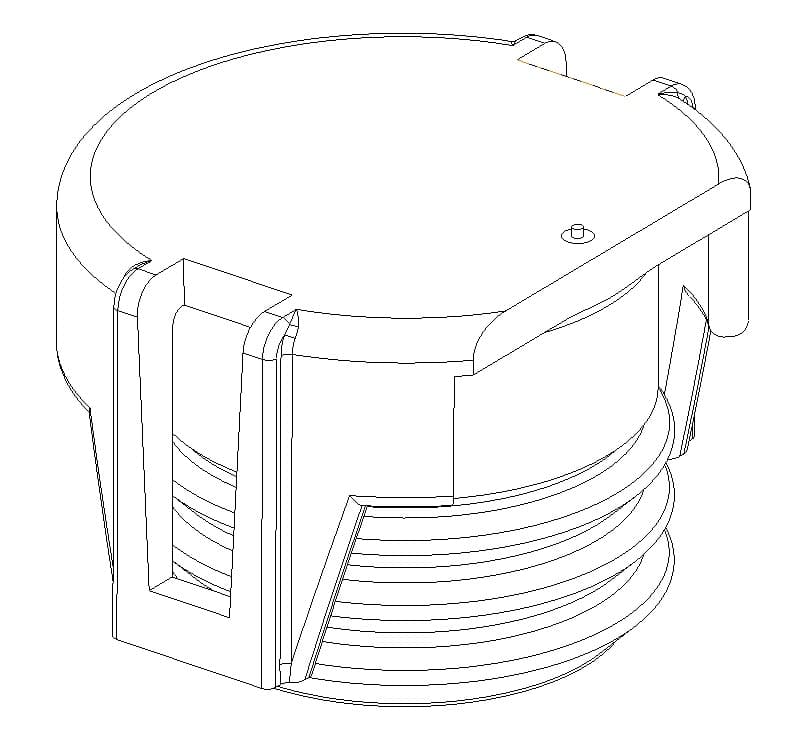

Wire Seal Cap, Cavity Hole Diameter 6.2mm
32195X0LL
Product Category:
SEALSLegacy Part Number:
19062000000Seal type
Wire Seal Cap
Cable diam min [mm]
5.6
Cable diam max [mm]
6.2
Wire Seal Cap, Cavity Hole Diameter 7.7mm
32195X0KU
Product Category:
SEALSLegacy Part Number:
19054000000Seal type
Wire Seal Cap
Cable diam min [mm]
6.9
Cable diam max [mm]
7.7
Wire Seal Cap, Cavity Hole Diameter 8.3mm
32195X0K7
Product Category:
SEALSLegacy Part Number:
17724000000Seal type
Wire Seal Cap
Cable diam min [mm]
7.6
Cable diam max [mm]
8.3

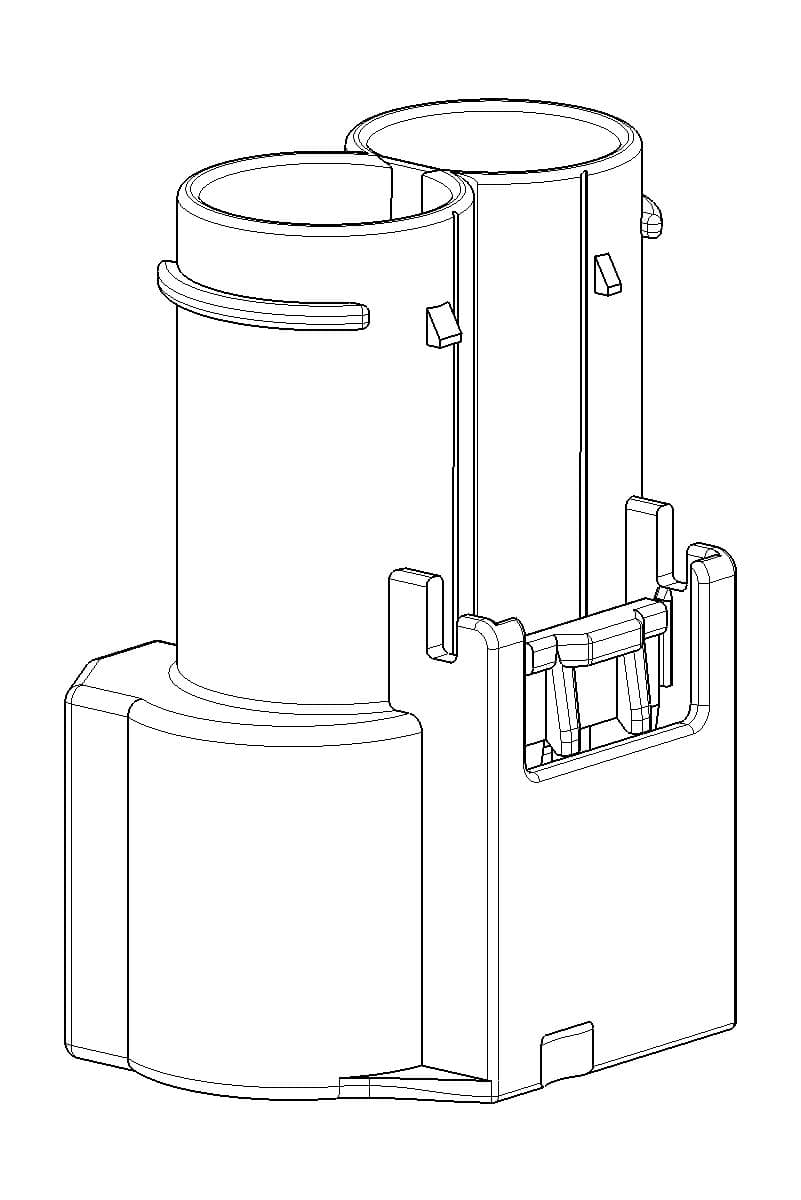

E11426700 - 2way MAK 12 Receptacle Sealed Connector with CPA
Part Number: E11426700
Product Specification
Previously cataloged under part number 19922000001.
This connector belongs to the CONNECTORS product category within the MAK product family. It is a sealed receptacle type with 2 cavities, accommodating 12 mm terminals.
The connector is equipped with a Connector Position Assurance (CPA) mechanism to confirm full mating engagement and prevent unintended unmating.
Part Number: E11426700.
This product requires other components for a fully functional assembly configuration:
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm² (E06825700)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm² (E02717600)
- MAK 12 Receptacle Unsealed Ultrasonic Terminal, Sn, 4-35mm² (32025Y2UU)
- Cavity Blind Plug (32195X0N6)
- Wire Seal Cap, Cavity Hole Diameter 6.2mm (32195X0LL)
- Wire Seal Cap, Cavity Hole Diameter 7.7mm (32195X0KU)
- Wire Seal Cap, Cavity Hole Diameter 8.3mm (32195X0K7)
Lear Connection Systems is offering other variants of this product:
