TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E05940900
- Legacy Part Number
- 19600000001
- Product Family
- MAK
Other properties
- No. of cavities
- 2
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 12
- Sealable
- Sealed
- Color
- BLACK
- Connector Application
- Inline
- Mechanical coding
- A
4way AFK/MAK 2.8/12 Receptacle Sealed Black Connector with CPA, Code A
E01588300
Product Category:
CONNECTORSLegacy Part Number:
19335000001Product Family
AFK, MAK
No. of cavities
4
Terminal Size [mm]
2.8, 12
TPA
With TPA
2way MAK 12 Receptacle Sealed Black Connector with CPA, Code A
E11426600
Product Category:
CONNECTORSLegacy Part Number:
19921000001Product Family
MAK
No. of cavities
2
Terminal Size [mm]
12
TPA
–
2way MAK 12 Receptacle Sealed Connector with CPA
E11426800
Product Category:
CONNECTORSLegacy Part Number:
19923000001Product Family
MAK
No. of cavities
2
Terminal Size [mm]
12
TPA
–
2way MAK 12 Receptacle Sealed Connector with CPA
E11426700
Product Category:
CONNECTORSLegacy Part Number:
19922000001Product Family
MAK
No. of cavities
2
Terminal Size [mm]
12
TPA
–
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm²
E02717600
Product Category:
TERMINALSLegacy Part Number:
28499000001Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm²
E02717800
Product Category:
TERMINALSLegacy Part Number:
28563000001Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm²
E04422100
Product Category:
TERMINALSLegacy Part Number:
28815000001Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
Cavity Blind Plug
32195X0N6
Product Category:
SEALSLegacy Part Number:
19131000000Seal type
Cavity Blind Plug
Cable diam min [mm]
–
Cable diam max [mm]
–
Wire Seal Cap, Cavity Hole Diameter 8.3mm
32195X0K7
Product Category:
SEALSLegacy Part Number:
17724000000Seal type
Wire Seal Cap
Cable diam min [mm]
7.6
Cable diam max [mm]
8.3
Wire Seal Cap
E05918700
Product Category:
SEALSLegacy Part Number:
19590000001Seal type
Wire Seal Cap
Cable diam min [mm]
5.4
Cable diam max [mm]
6.2
Loading...

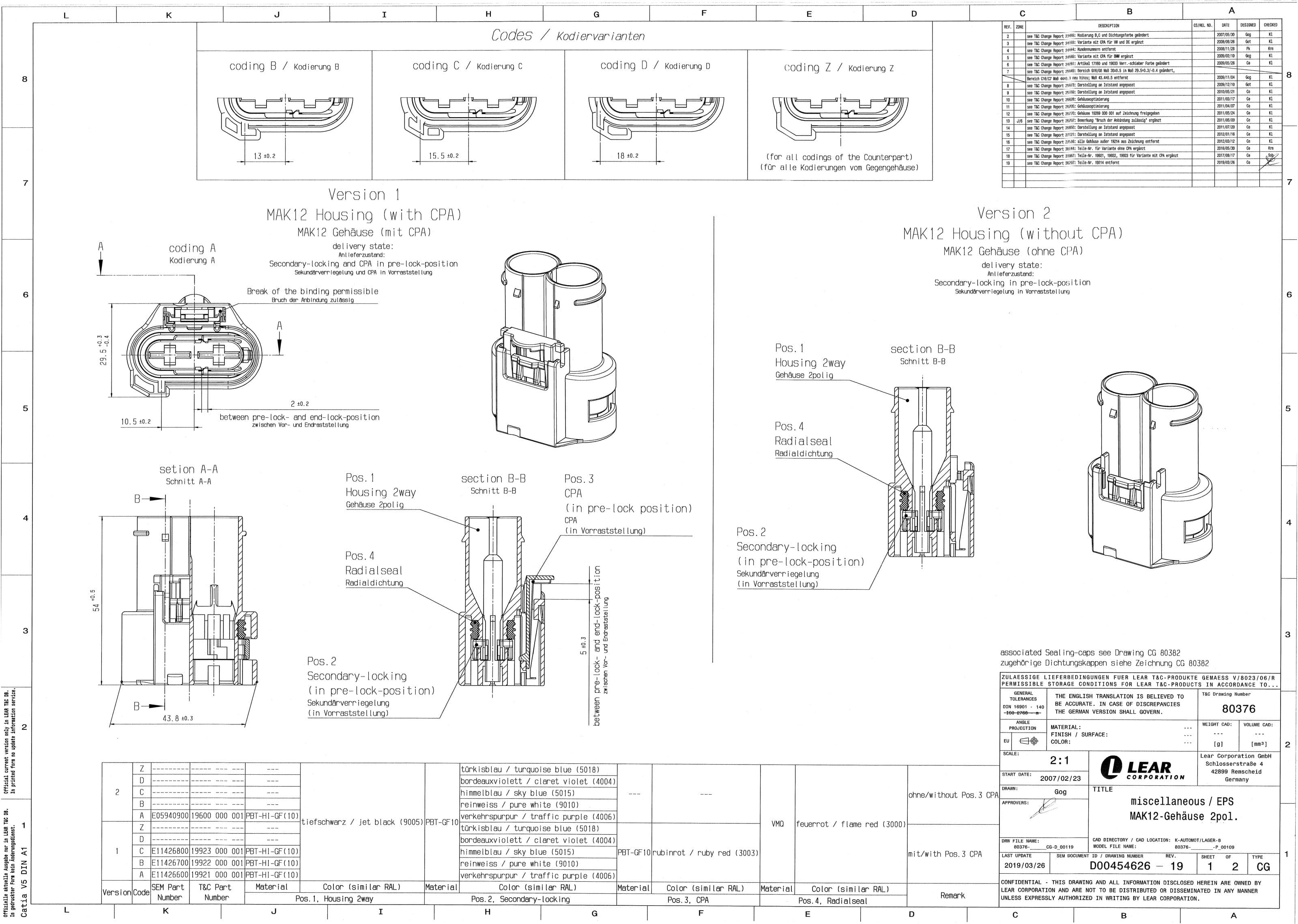

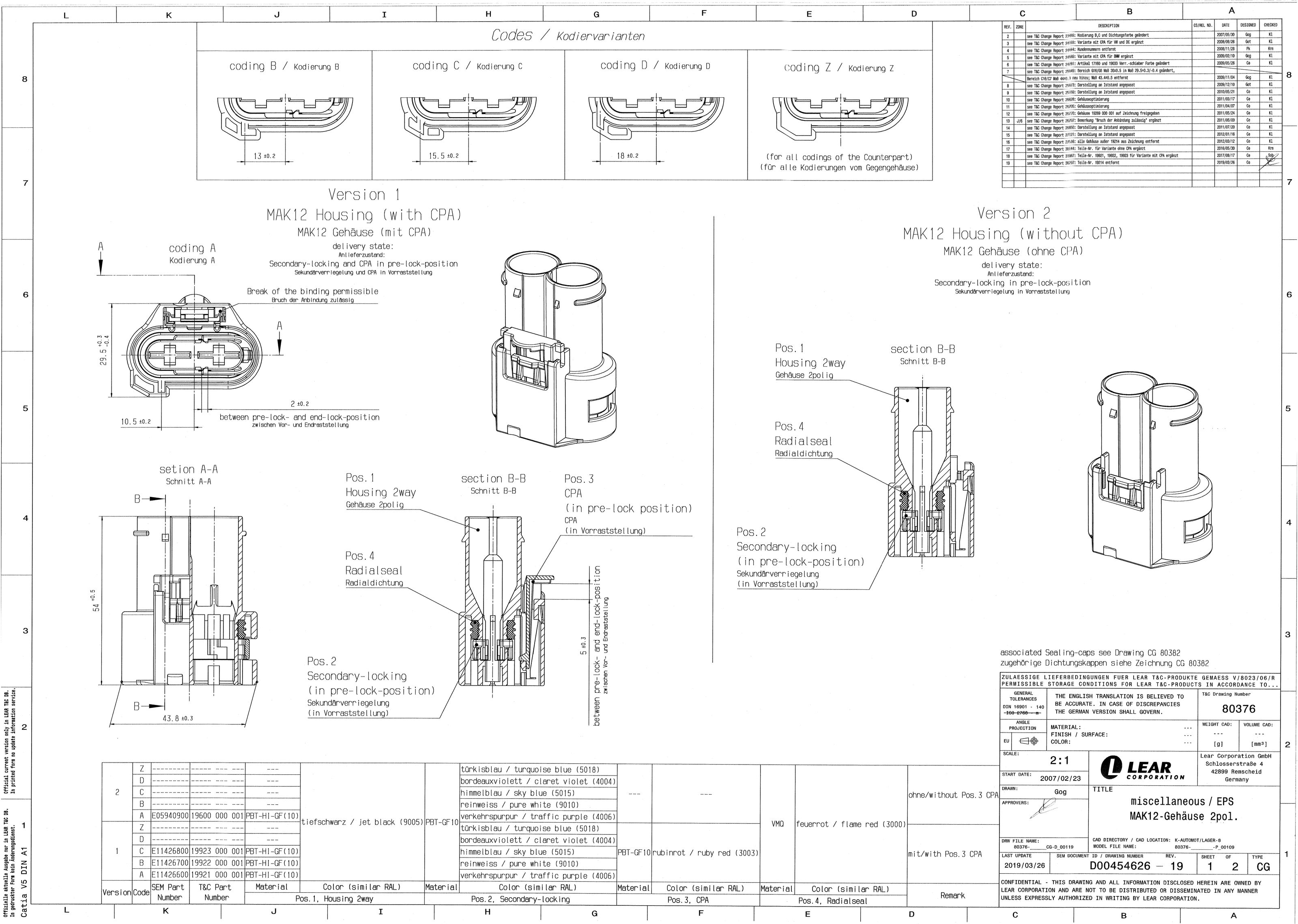

E05940900 - 2way MAK 12 Receptacle Sealed Black Connector, Code A
Part Number: E05940900
Click to see 3D model
Product Specification
Previously cataloged under part number 19600000001.
This connector belongs to the MAK product family within the Connectors category, configured as a 2-way receptacle with a terminal size of 12 mm. The connector is fully sealed.
Primarily designed for inline applications in automotive vehicles.
Mechanical coding A provides a poka-yoke mating feature, ensuring correct connector orientation and preventing mis-mating during assembly.
The main connector part is molded in PBT GF with a dominant black color.
Part Number: E05940900.
This product requires other components for a fully functional assembly configuration:
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm² (E02717600)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm² (E02717800)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm² (E04422100)
- Cavity Blind Plug (32195X0N6)
- Wire Seal Cap, Cavity Hole Diameter 8.3mm (32195X0K7)
- Wire Seal Cap (E05918700)
Lear Connection Systems is offering other variants of this product:
