TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E29639400
- Product Family
- HV PT
Other properties
- No. of cavities
- 3
- Terminal Type
- Receptacle
- Sealable
- Sealed
- Color
- ORANGE
- Min Temp (C)
- -40
- Max Temp (C)
- 140
- Connector Application
- Battery Pack, Electric Motor, Inverter, Pass-through
- Remarks
- Shielded
2D Drawing

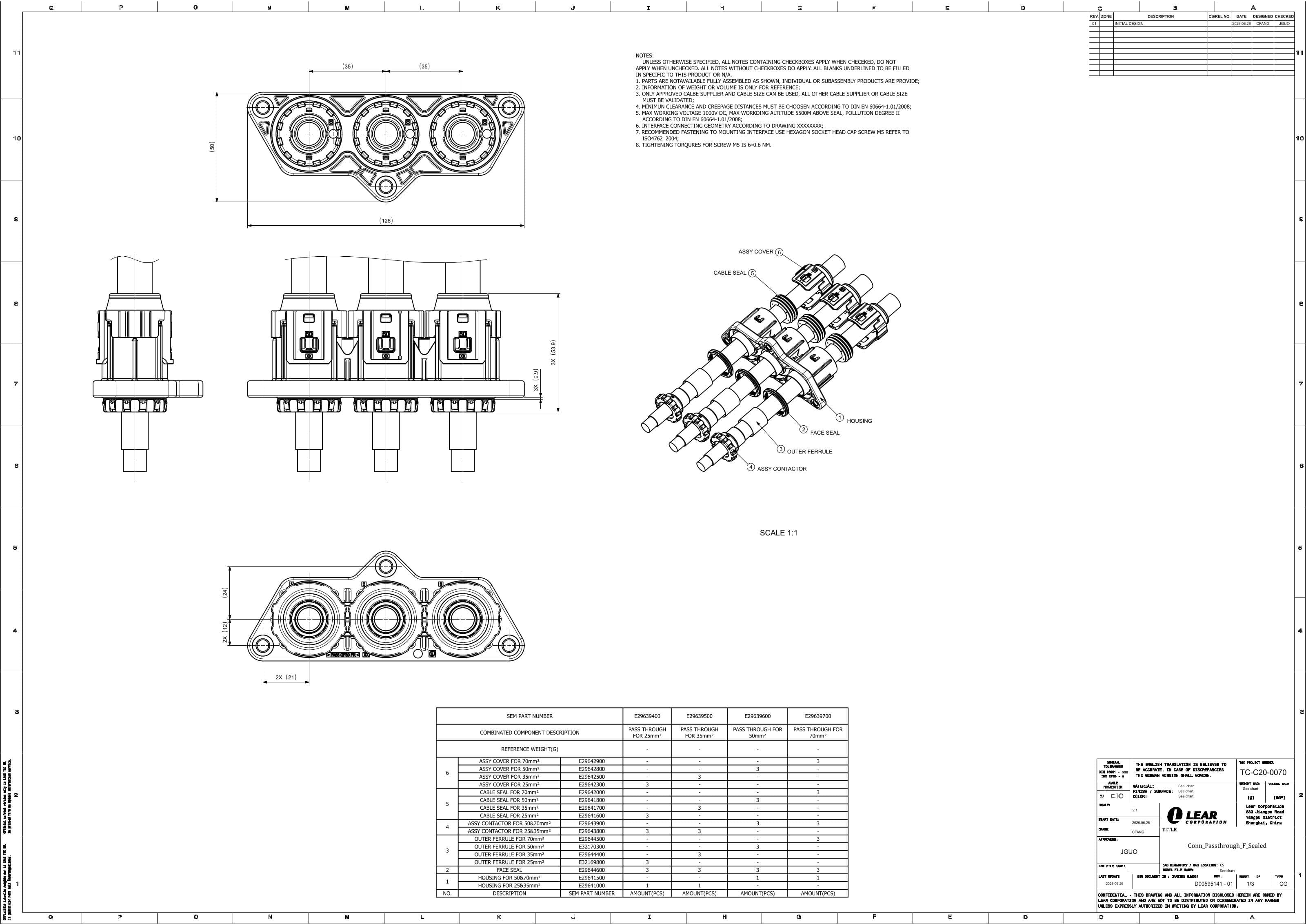

2D Drawing E29639400
3way HV PT Receptacle Sealed Orange Connector
E29639500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
3
Product Family
HV PT
Terminal Size [mm]
–
Sealable
Sealed
3way HV PT Receptacle Sealed Orange Connector
E29639600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
3
Product Family
HV PT
Terminal Size [mm]
–
Sealable
Sealed
3way HV PT Receptacle Sealed Orange Connector
E29639700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
3
Product Family
HV PT
Terminal Size [mm]
–
Sealable
Sealed
E29639400 - 3way HV PT Receptacle Sealed Orange Connector
Part Number: E29639400
Product Specification
A 3-cavity sealed receptacle belonging to the HV PT product family within the Connectors category.
Primarily designed for battery pack, electric motor, inverter, and pass-through applications in automotive vehicles.
The main connector part is molded in PA66 GF with a dominant orange color. The connector operates across a temperature range of -40 to 140 °C.
This connector is shielded.
Part Number: E29639400, compatible with: IPT (Internal Power Terminal), Shieldpack Pass-through.
Lear Connection Systems is offering other variants of this product:
