TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E29639300
- Product Family
- HV PT
Other properties
- No. of cavities
- 2
- Terminal Type
- Receptacle
- Sealable
- Sealed
- Color
- ORANGE
- Min Temp (C)
- -40
- Max Temp (C)
- 140
- Connector Application
- Battery Pack, Electric Motor, Inverter, Pass-through
- Remarks
- Shielded

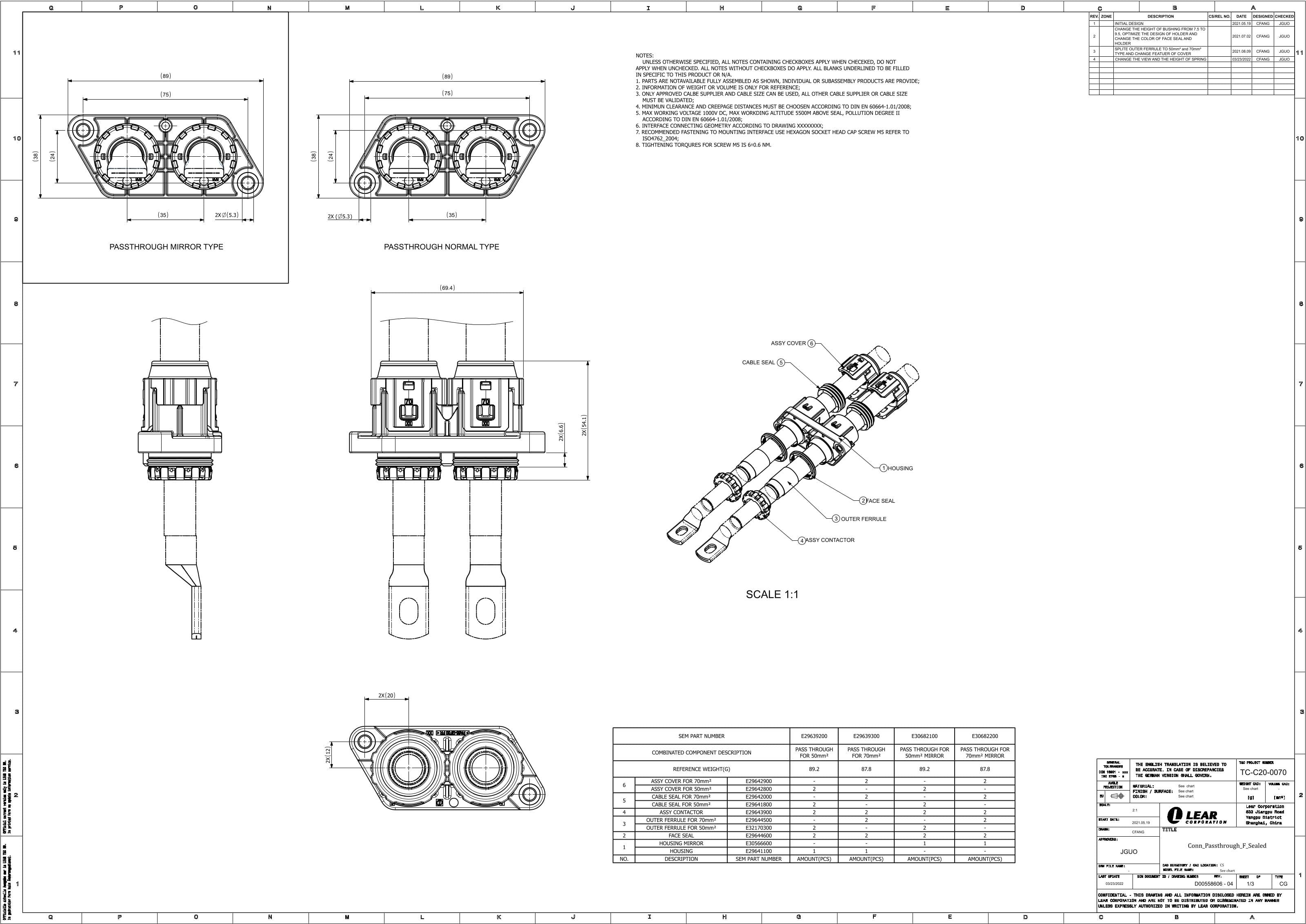

2D Drawing
2D Drawing E29639300
2way HV PT Receptacle Sealed Orange Connector
E29639000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
2
Product Family
HV PT
Terminal Size [mm]
–
Sealable
Sealed
2way HV PT Receptacle Sealed Orange Connector
E29639100
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
2
Product Family
HV PT
Terminal Size [mm]
–
Sealable
Sealed
2way HV PT Receptacle Sealed Orange Connector
E29639200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
2
Product Family
HV PT
Terminal Size [mm]
–
Sealable
Sealed
2way HV PT Receptacle Sealed Orange Connector
E31307500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
2
Product Family
HV PT
Terminal Size [mm]
–
Sealable
Sealed
E29639300 - 2way HV PT Receptacle Sealed Orange Connector
Part Number: E29639300
Product Specification
A 2-way sealed receptacle belonging to the HV PT connector family within the Connectors product category.
Primarily designed for battery pack, electric motor, inverter, and pass-through applications in automotive vehicles.
The main connector part is molded in PA66 GF with a dominant orange color. The assembly is shielded and operates across a temperature range of −40 °C to 140 °C.
Part Number: E29639300, compatible with: IPT (Internal Power Terminal), Shieldpack Pass-through.
Lear Connection Systems is offering other variants of this product:
