TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E20930302
- Product Family
- HC
Other properties
- No. of cavities
- 1
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 14.5
- Sealable
- Sealed
- CPA
- With CPA
- TPA
- With TPA
- Color
- GREEN
- Min Temp (C)
- -40
- Max Temp (C)
- +125
- Connector Application
- Inline, High Current, Power Connections
- Mechanical coding
- D

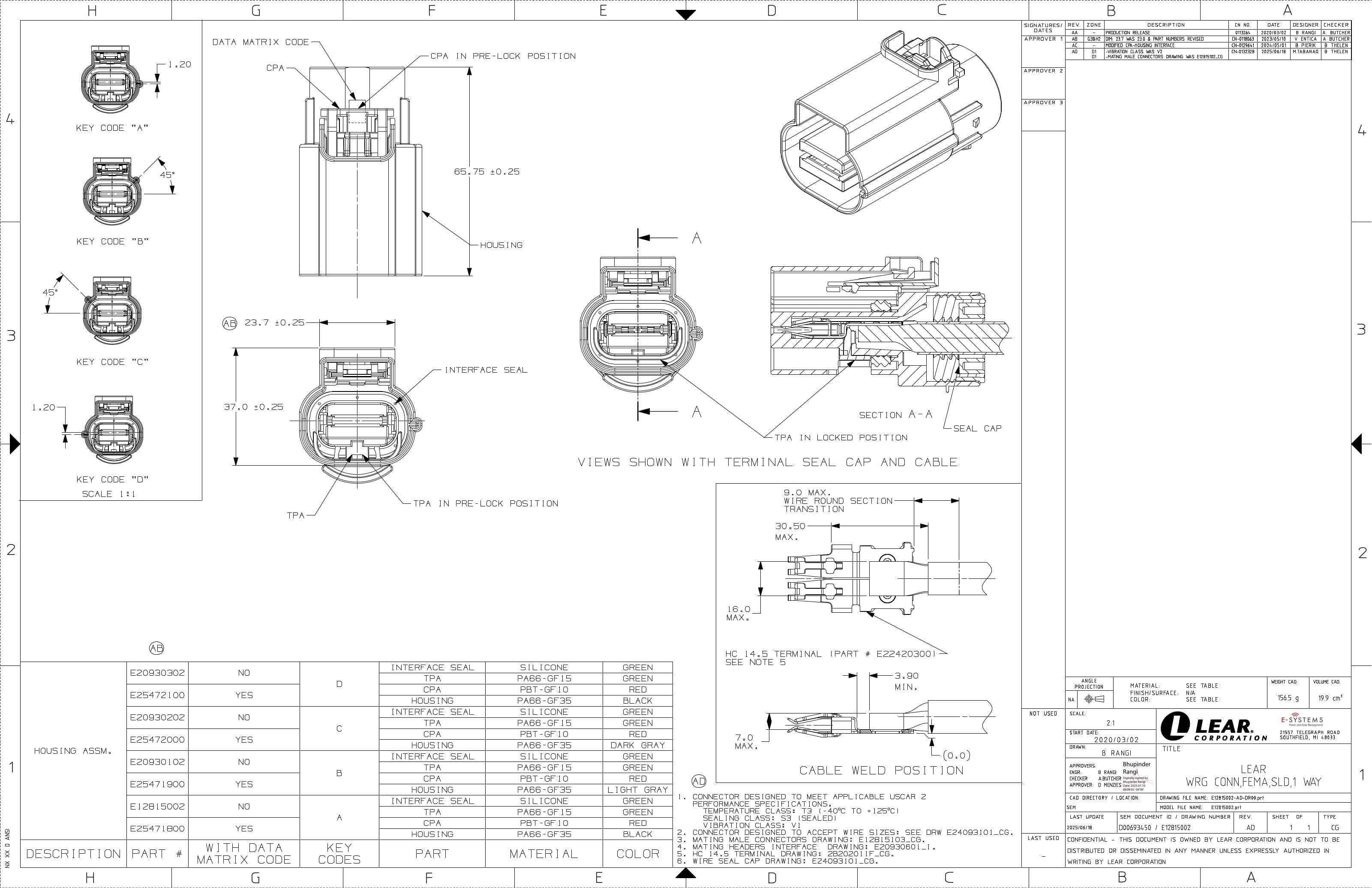

2D Drawing
2D Drawing E20930302
1way HC 14.5 Receptacle Sealed Connector with CPA
E20930102
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Sealed
1way HC 14.5 Receptacle Sealed Connector with CPA
E20930202
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Sealed
1way HC 14.5 Receptacle Sealed Connector with CPA
E12815002
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Sealed
1way HC 14.5 Receptacle Sealed Connector with CPA
E25472100
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Sealed
HC 14.5 Receptacle Ultrasonic Terminal, Ag, 35-50mm²
E22420300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
14.5
Minimum Cable Cross section [mm²]
35
Maximum Cable Cross section [mm²]
50
E20930302 - 1way HC 14.5 Receptacle Sealed Connector with CPA
Part Number: E20930302
Product Specification
This single-cavity connector belongs to the HC product family within the Connectors category, configured as a sealed receptacle with a 14.5 mm terminal size.
Primarily designed for inline, high current, and power connection applications in automotive vehicles.
The connector is equipped with both Connector Position Assurance (CPA) and Terminal Position Assurance (TPA), ensuring reliable mating engagement and terminal retention in demanding operating conditions.
Part Number: E20930302.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
