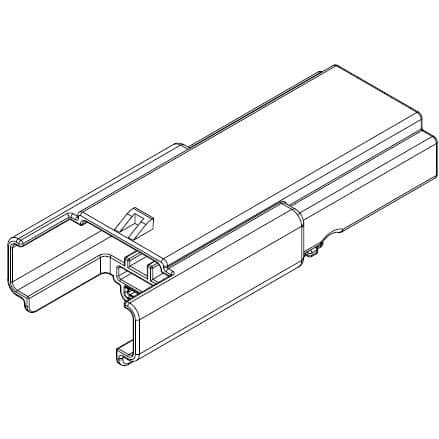

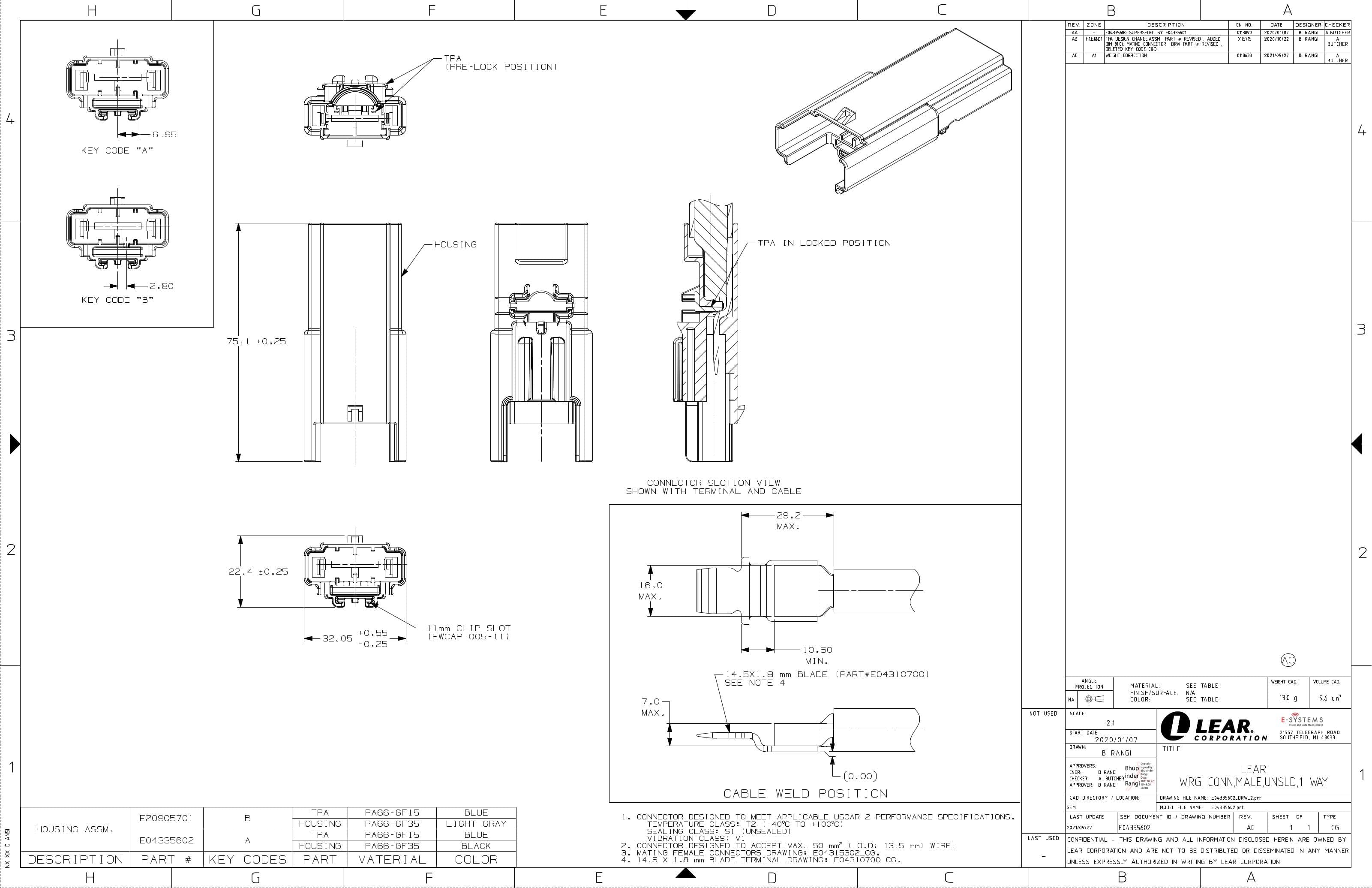

E20905701 - 1way HC 14.5 Tab Unsealed Black Connector, Code A

This single-cavity connector belongs to the HC product family within the Connectors category, configured as an unsealed design with a 14.5 mm Tab terminal type.

Primarily designed for inline, high current, and power connections in automotive vehicles.

Mating integrity is ensured through a Code A mechanical coding poka-yoke feature, and the connector is equipped with Terminal Position Assurance (TPA). A connector-to-car body fixation feature is also incorporated.

The main connector part is molded in PA66 GF with a dominant black color.

Part Number: E20905701.
