TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
3216786D1
Legacy Part Number
18756054000
Product Family
AFK

Other properties

No. of cavities
21
Terminal Type
Receptacle
Terminal Size [mm]
2.8
Sealable
Sealed

2D Drawing

2D Drawing 3216786D1

DOWNLOAD

3D PDF

3D PDF 3216786D1

DOWNLOAD

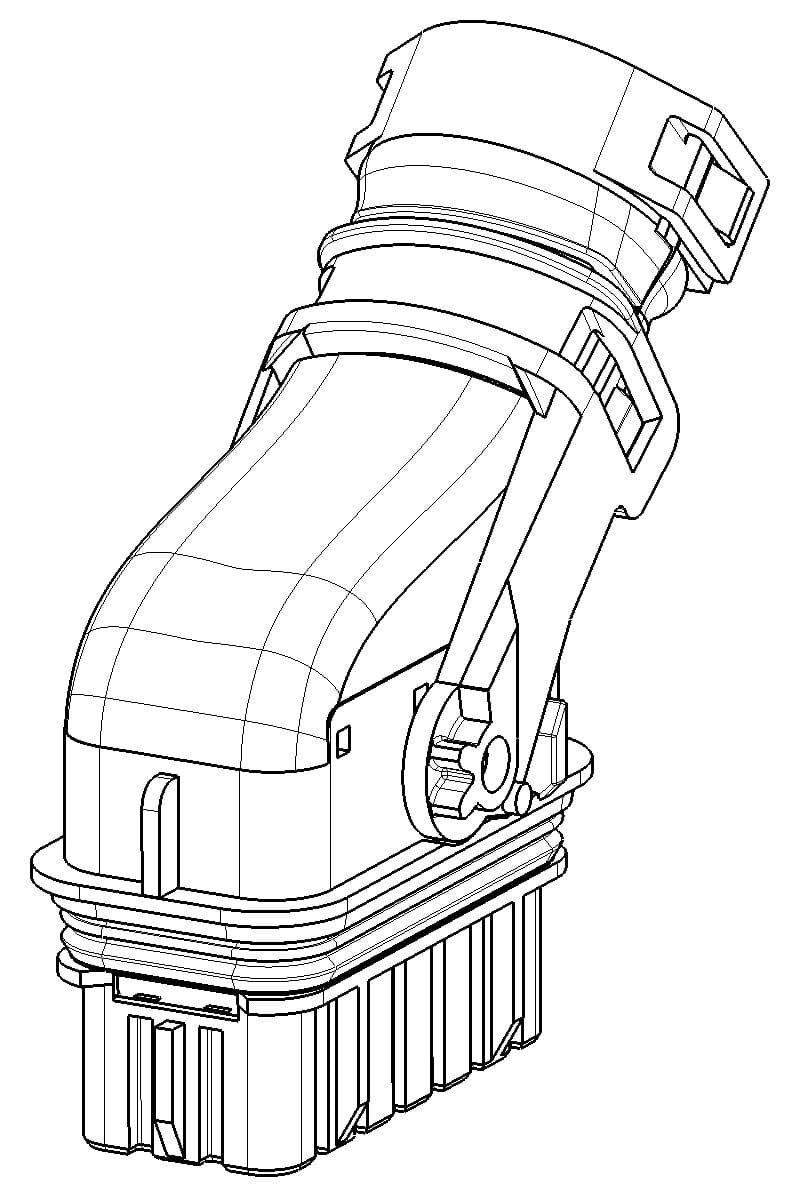

3216786D1 - 21way AFK 2.8 Receptacle Sealed Connector

Part Number: 3216786D1

21way AFK 2.8 Receptacle Sealed Connector

Product Specification

Previously cataloged under part number 18756054000.

This connector belongs to the CONNECTORS product category within the AFK product family. It is configured as a 21-way receptacle, accommodating 21 circuits, and is fully sealed for protection against environmental ingress.

The connector accepts 2.8 mm terminals of the receptacle type, making it compatible with the corresponding AFK 2.8 mm terminal series.

Part Number: 3216786D1.
