TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E01325000
- Product Family
- AFK, MSK
Other properties
- No. of cavities
- 5
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 100
- Connector Application
- Seat Motor
- Mechanical coding
- Z

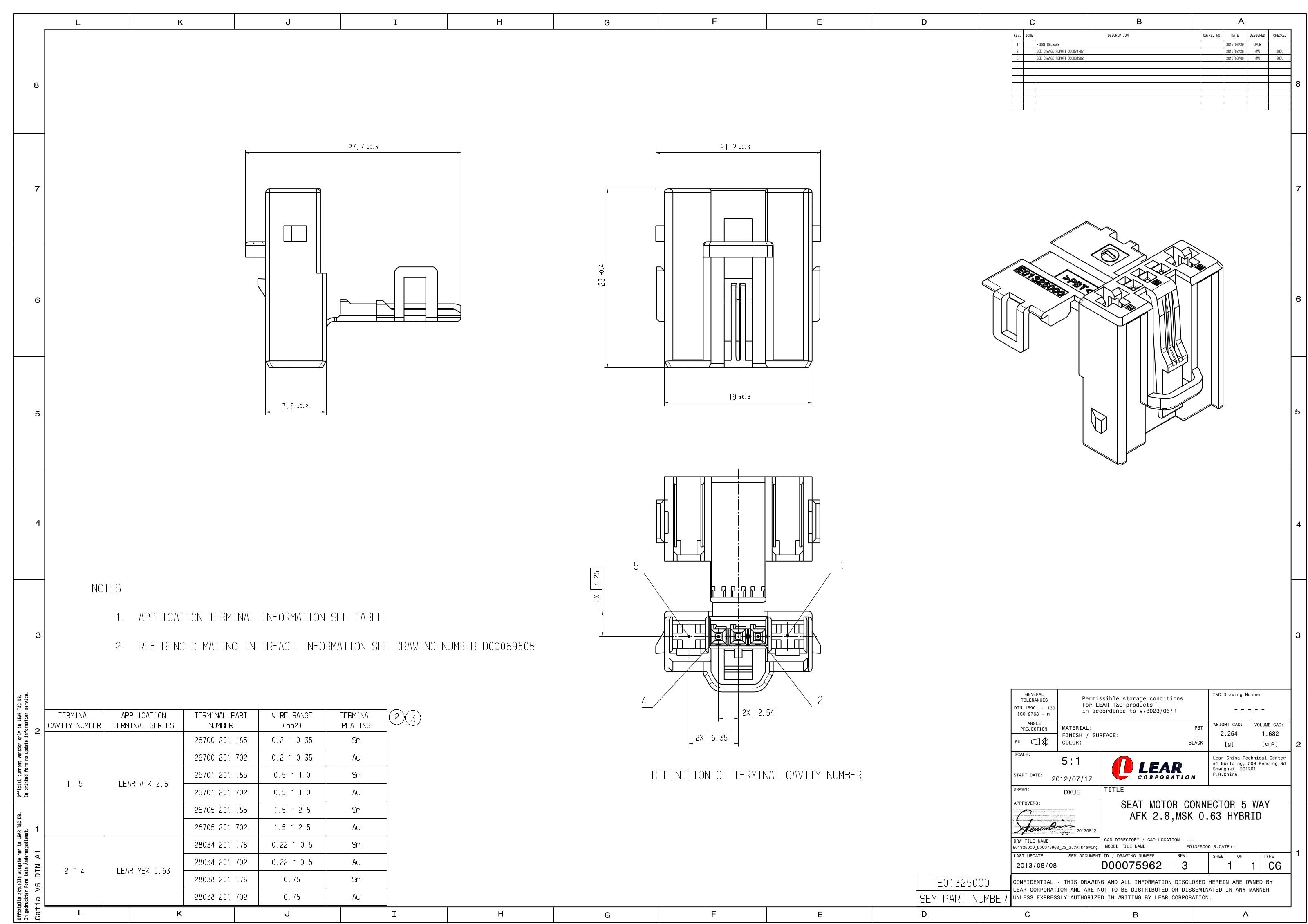

2D Drawing
2D Drawing E01325000
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
3202536L6
Product Category:
TERMINALSLegacy Part Number:
26700201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.2-0.35mm²
3202593B8
Product Category:
TERMINALSLegacy Part Number:
26700201702Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
3202581Y9
Product Category:
TERMINALSLegacy Part Number:
26701201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.5-1mm²
3202593C6
Product Category:
TERMINALSLegacy Part Number:
26701201702Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
3202581I7
Product Category:
TERMINALSLegacy Part Number:
26705201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
AFK 2.8 Receptacle Unsealed Crimp Terminal, Au, 1.5-2.5mm²
3202593D4
Product Category:
TERMINALSLegacy Part Number:
26705201702Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
3202574Z6
Product Category:
TERMINALSLegacy Part Number:
28034201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.22-0.5mm²
32025Y0WH
Product Category:
TERMINALSLegacy Part Number:
28034201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
3202575I5
Product Category:
TERMINALSLegacy Part Number:
28038201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm²
E00000460
Product Category:
TERMINALSLegacy Part Number:
28038201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E01325000 - 5way AFK/MSK 0.63/2.8 Receptacle Unsealed Black Connector, Code Z
Part Number: E01325000
Product Specification
This unsealed receptacle connector accommodates 5 cavities across the AFK and MSK product families, supporting terminal sizes of 0.63 mm and 2.8 mm within the Connectors category.
Primarily designed for seat motor applications in automotive vehicles.
Mating integrity is ensured through a Code Z poka-yoke mechanical coding feature, and the connector is equipped with Terminal Position Assurance (TPA) to secure terminals in place.
The main connector part is molded in PBT with a dominant black color, and the assembly is rated for an operating temperature range of −40 to 100 °C.
Part Number: E01325000.
This product requires other components for a fully functional assembly configuration:
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (3202536L6)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.2-0.35mm² (3202593B8)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (3202581Y9)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Au, 0.5-1mm² (3202593C6)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (3202581I7)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Au, 1.5-2.5mm² (3202593D4)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (3202574Z6)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.22-0.5mm² (32025Y0WH)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (3202575I5)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, 0.5-0.75mm² (E00000460)
