TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E49068100
- Product Family
- AFK
Other properties
- No. of cavities
- 6
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 2.8
- Sealable
- Unsealed
- Color
- BLACK
2D Drawing

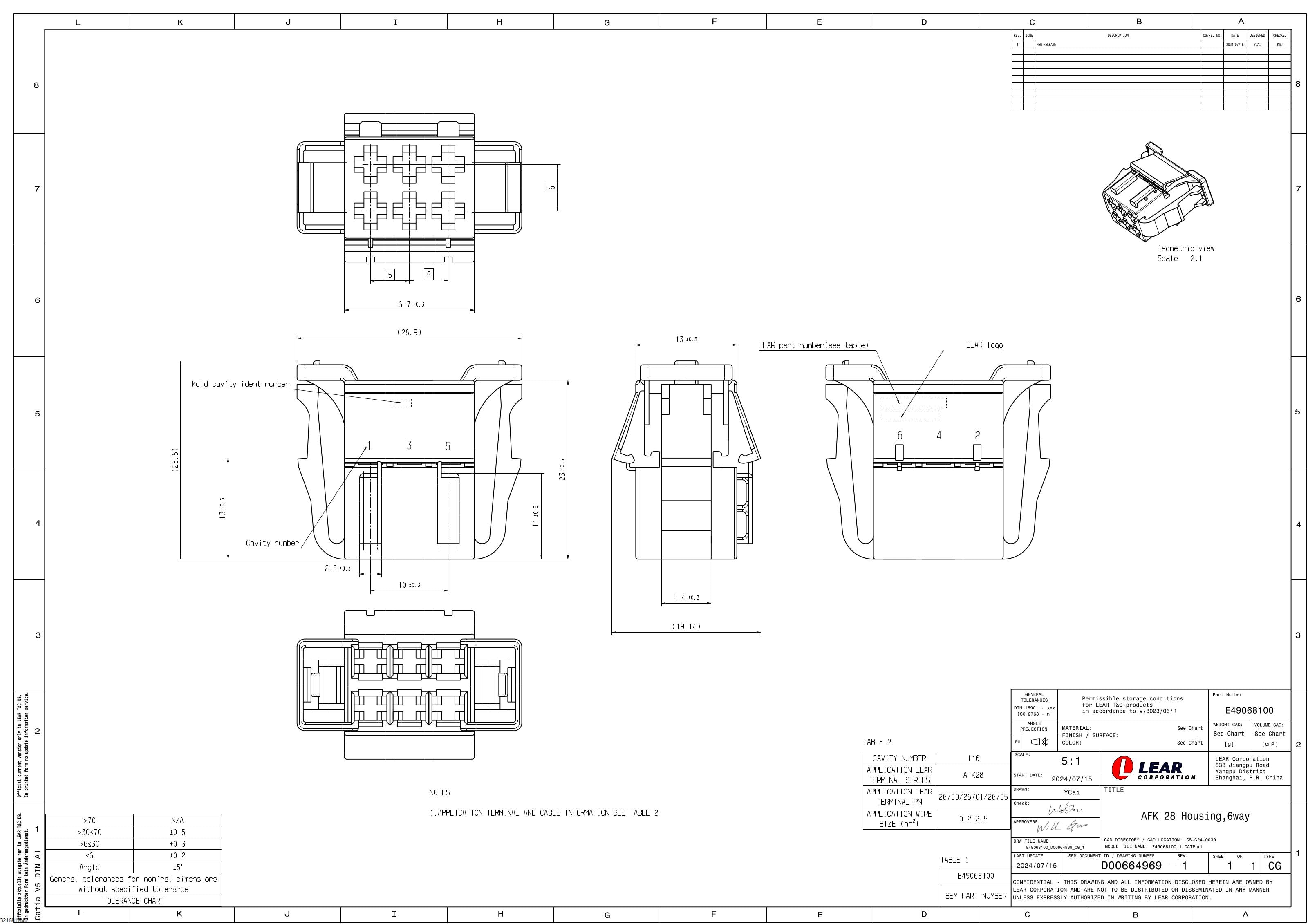

2D Drawing E49068100
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
3202536L6
Product Category:
TERMINALSLegacy Part Number:
26700201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
3202581Y9
Product Category:
TERMINALSLegacy Part Number:
26701201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E26574300
Product Category:
TERMINALSLegacy Part Number:
26701000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
3202581I7
Product Category:
TERMINALSLegacy Part Number:
26705201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
E26574400
Product Category:
TERMINALSLegacy Part Number:
26705000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
E49068100 - 6way AFK 2.8 Receptacle Unsealed Black Connector
Part Number: E49068100
Product Specification
This connector belongs to the CONNECTORS product category within the AFK product family. It is configured as a 6-cavity receptacle, accommodating 2.8 mm terminals in an unsealed arrangement.
The main connector part is molded in PBT with a dominant black color.
Part Number: E49068100.
This product requires other components for a fully functional assembly configuration:
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (3202536L6)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (3202581Y9)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E26574300)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (3202581I7)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (E26574400)
